48V 105Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)
Complete 48V lithium golf cart conversion

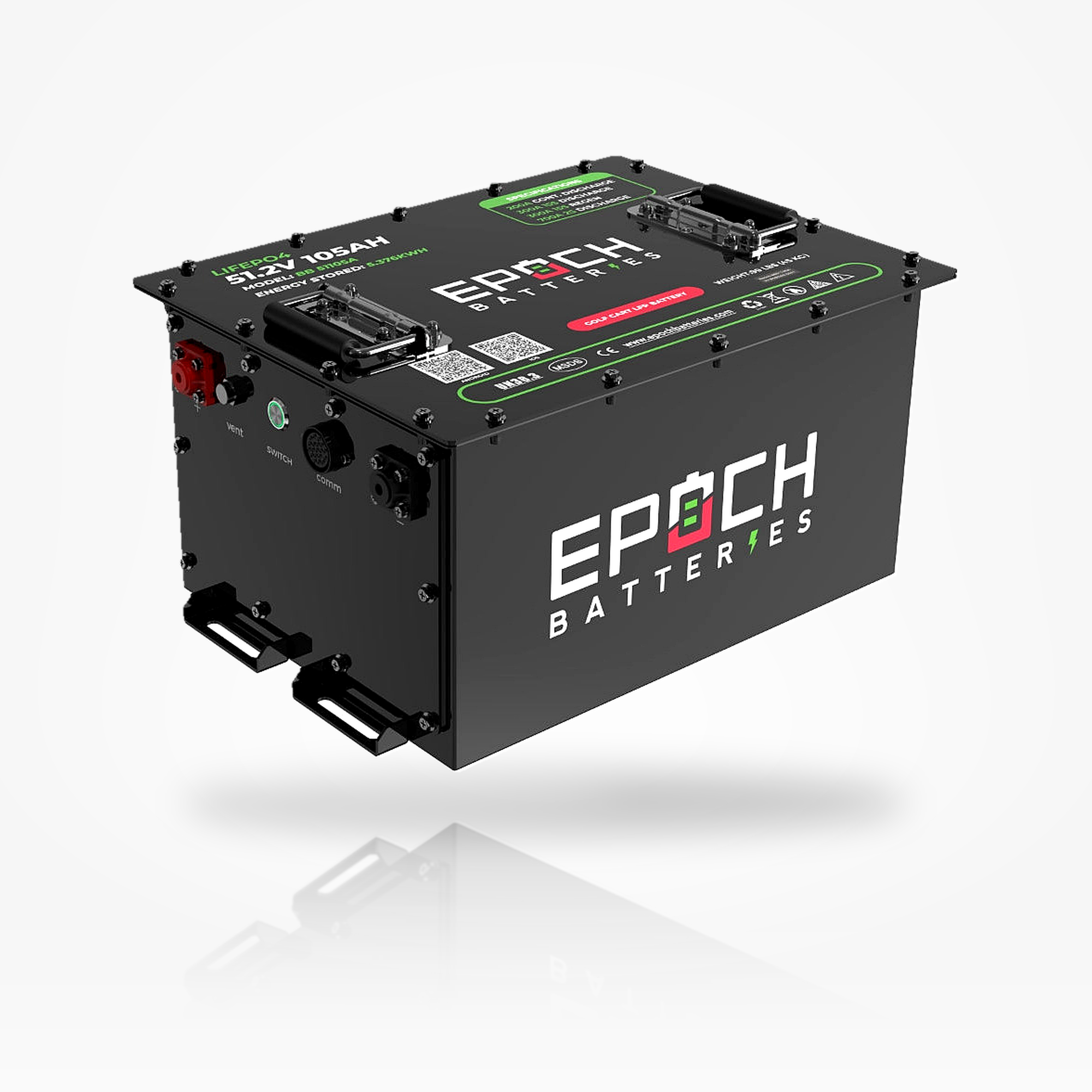

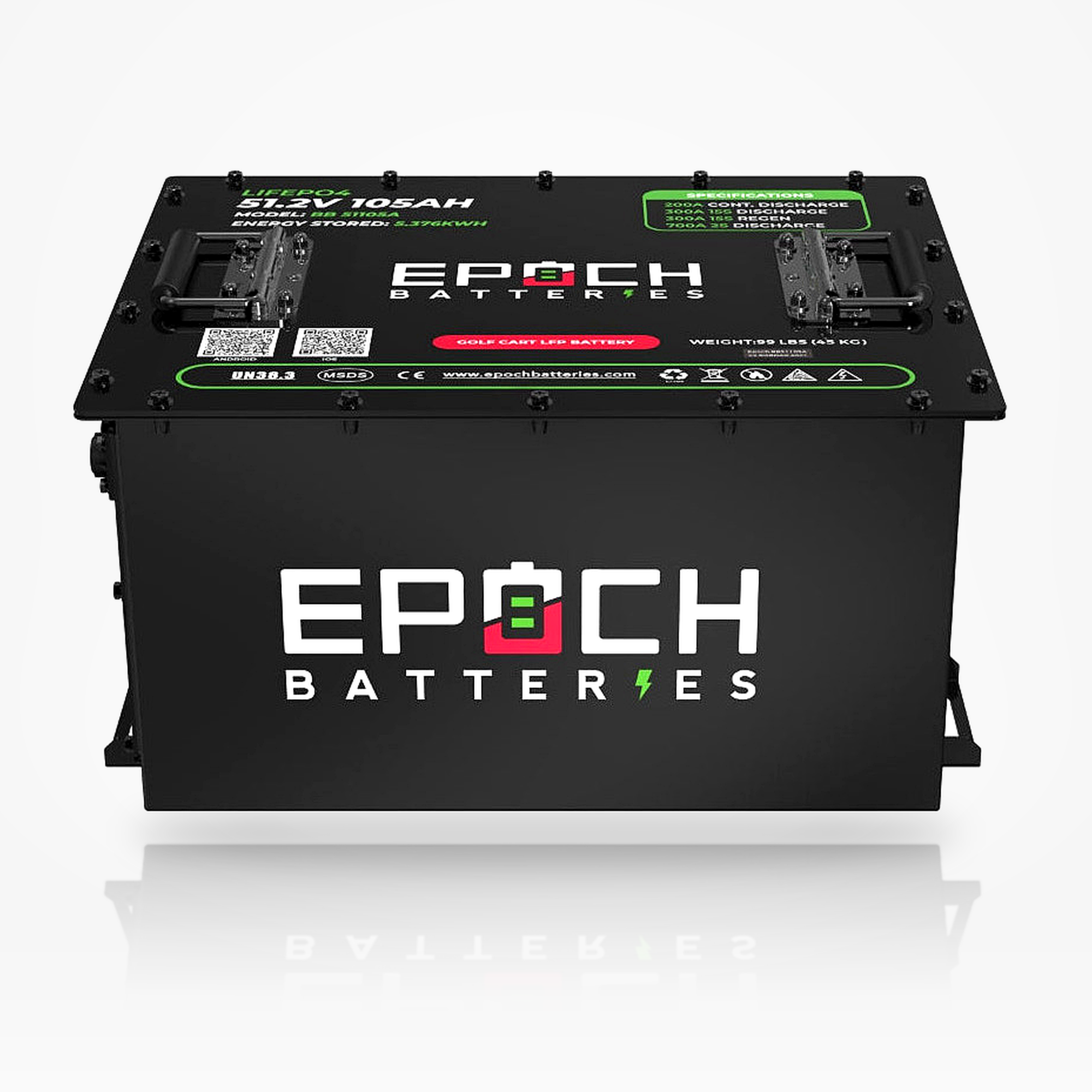

Epoch 48V 105Ah Lithium Golf Cart Battery Complete Kit
A complete 48V golf cart lithium conversion kit: the battery, a 48V 15A lithium charger with a 10 ft heavy-duty extension cord, a digital Bluetooth battery gauge, a 6 ft remote on/off power switch, a 48V to 12V step-down converter, a cart-specific charge port plug, cart-specific mounting brackets and free Bluetooth app access.
The Epoch 48V 105Ah lithium golf cart battery complete kit (model BB51105A-Kit, Big Box Series) converts a compatible 48V golf cart from lead-acid to lithium without sourcing every part separately. One 51.2V (48V class), 105Ah, 5.38kWh LiFePO4 battery replaces a full bank of 8V or 12V lead-acid batteries. The kit adds a 48V 15A waterproof lithium charger with a 10 ft heavy-duty extension cord, a digital Bluetooth battery gauge that reads state of charge from 0 to 100%, a 6 ft remote on/off power switch with wiring harness, a 48V to 12V step-down converter rated 25A, a cart-specific charge port plug to replace the factory charging receptacle, mounting brackets for your cart configuration (Club Car Precedent, EZGO RXV, EZGO TXT, Yamaha 2007–2010, Yamaha 2011+ or Other) and free access to the Epoch Li-Ion app.
Club Car DS carts: use the 48V 105Ah MINI Golf Cart Battery Complete Kit, which has a Club Car DS configuration. This full-size kit fits Club Car Precedent and Onward carts.
A Complete Lithium Conversion for 48V Carts
Replace a lead-acid bank with one LiFePO4 golf cart battery.
This kit replaces a full bank of 8V or 12V lead-acid batteries with a single 51.2V (48V class) 105Ah LiFePO4 battery. The result is one battery instead of a bank, and no watering or acid service; routine inspections of the terminals, cables and mounting still keep it operating safely.
With 200A continuous discharge, 300A for up to 15 seconds and 700A for up to 2 seconds, it supports acceleration, hills and upgraded controllers and motors whose current demand fits the battery ratings. Before installing, confirm your cart is a compatible 48V platform and check tray fitment, terminal clearance, cable size, overcurrent protection and the controller's current settings.

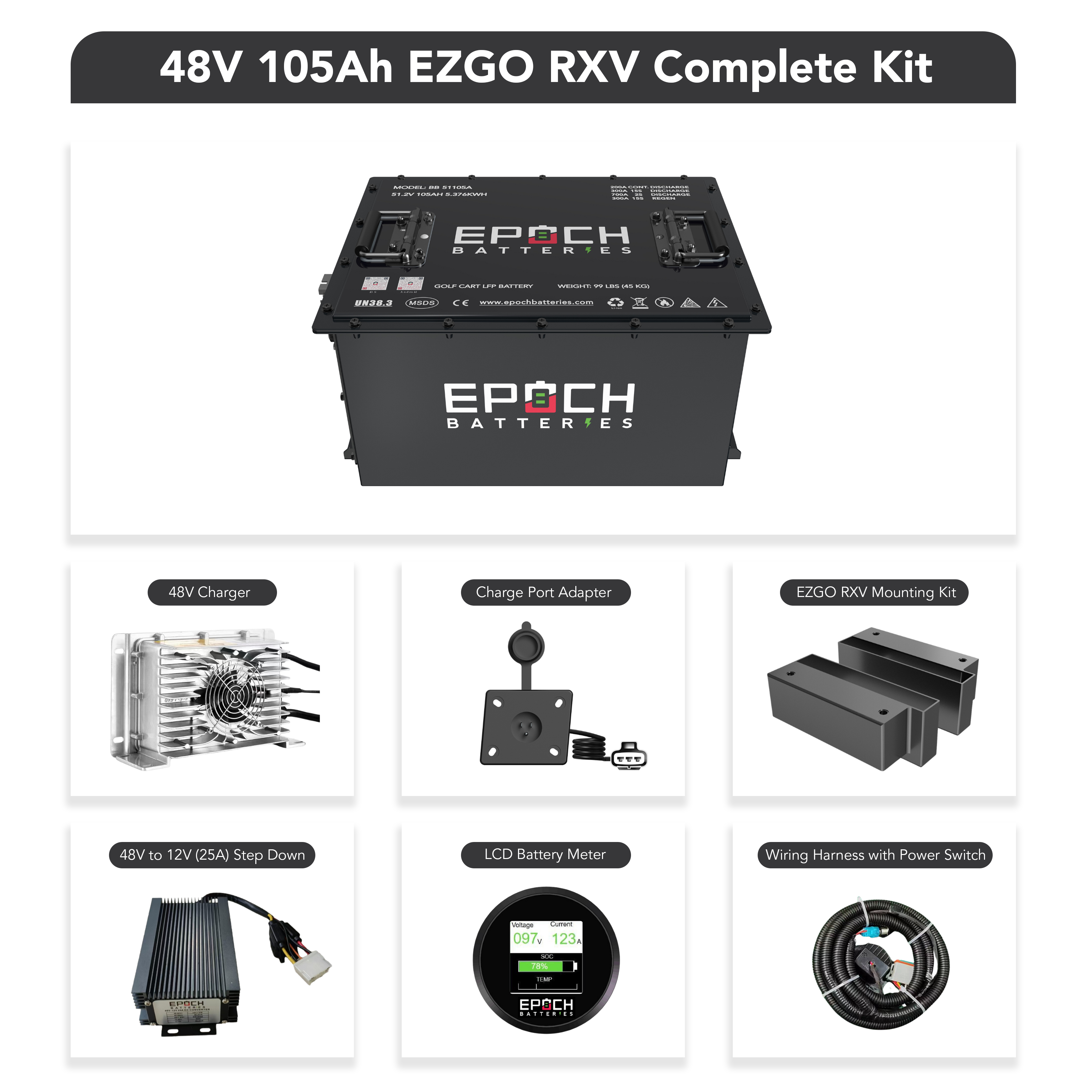

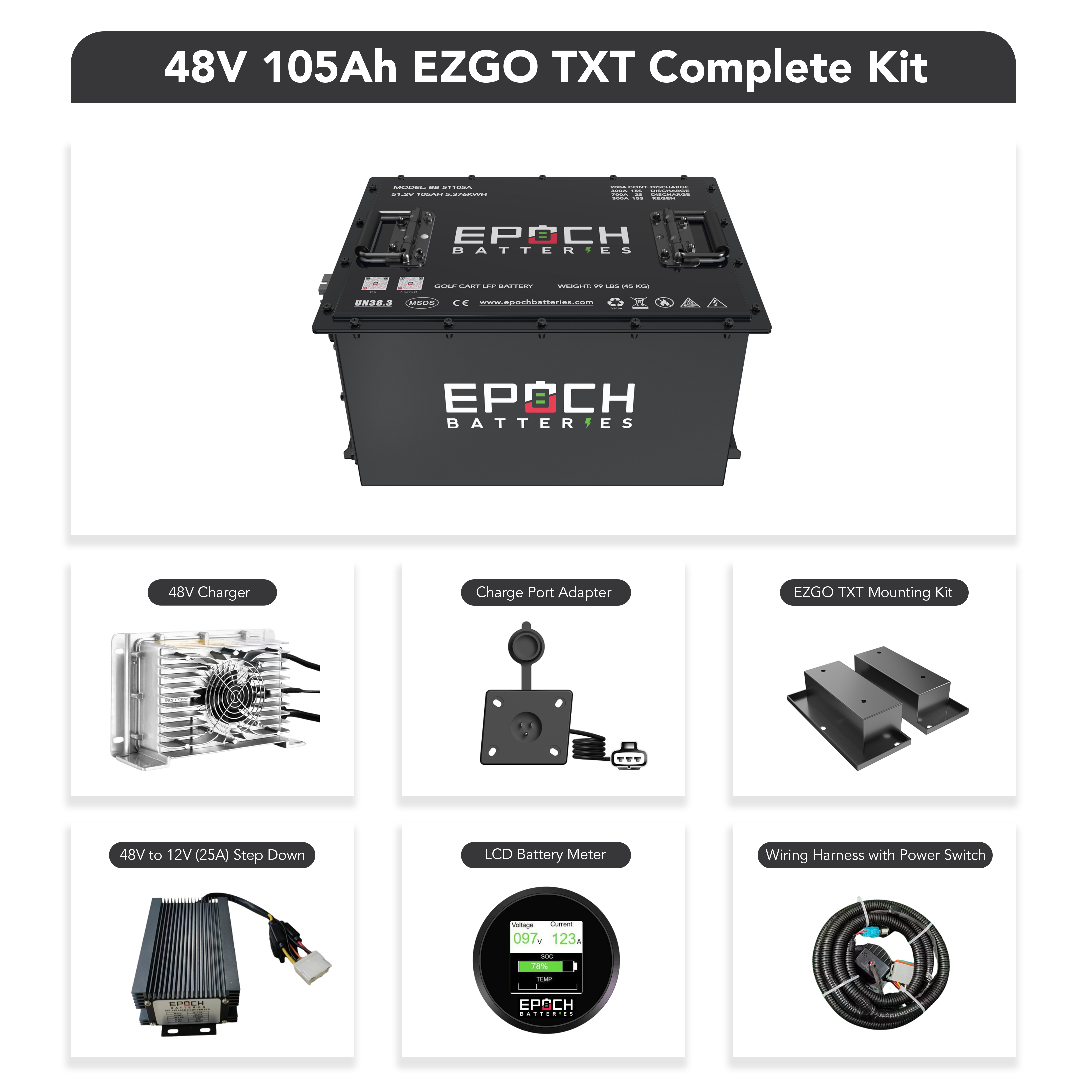

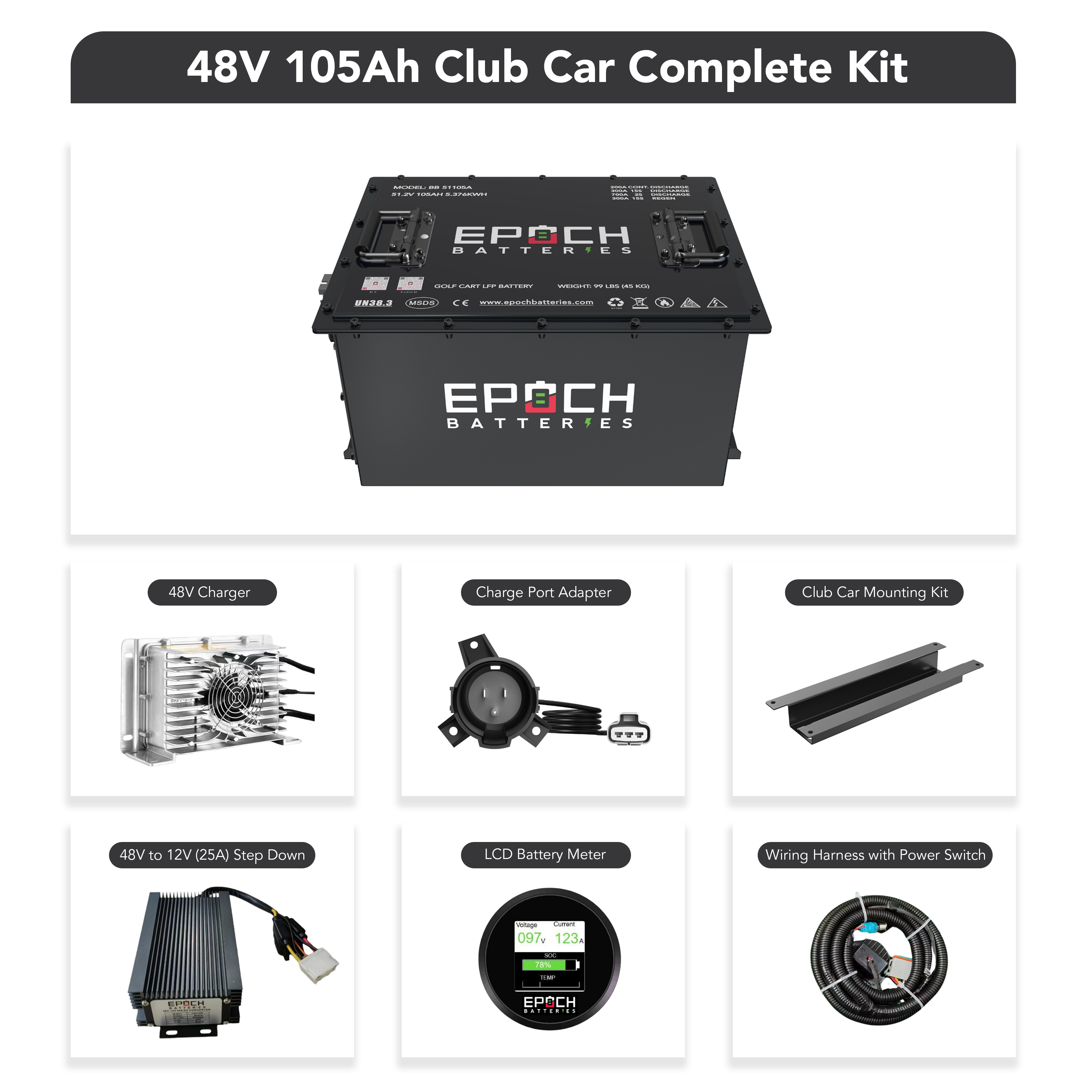

What's in the Box
The core conversion components in one kit.
Instead of sourcing a battery, charger, extension cord, gauge, remote switch, converter, charge port and brackets separately, the kit brings the main conversion components together. The listed kit contents do not include a main fuse or DC-rated breaker: install one selected for the wire, load and system voltage, as close as practical to the battery positive terminal, and make sure the cables and lugs are sized for your installation.

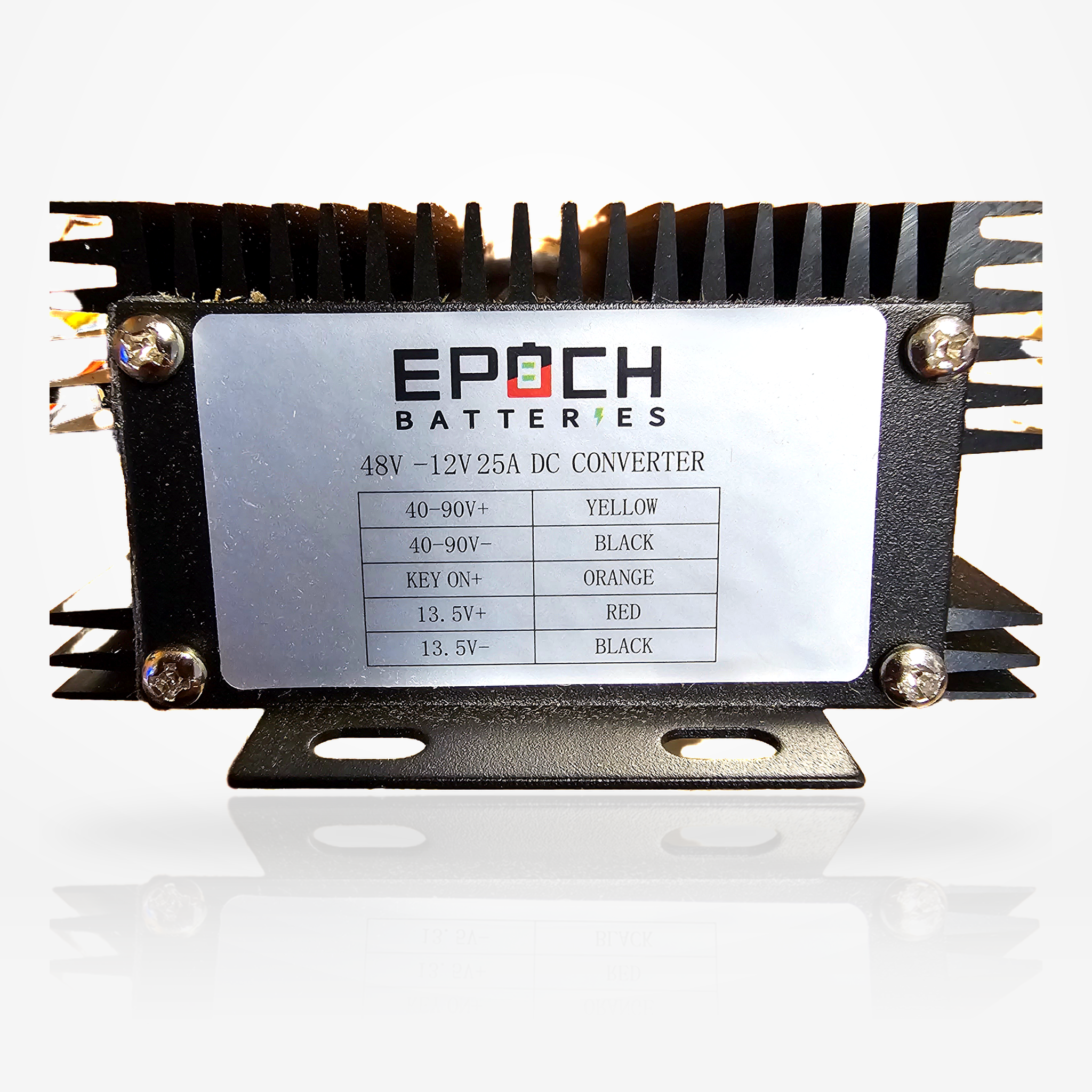

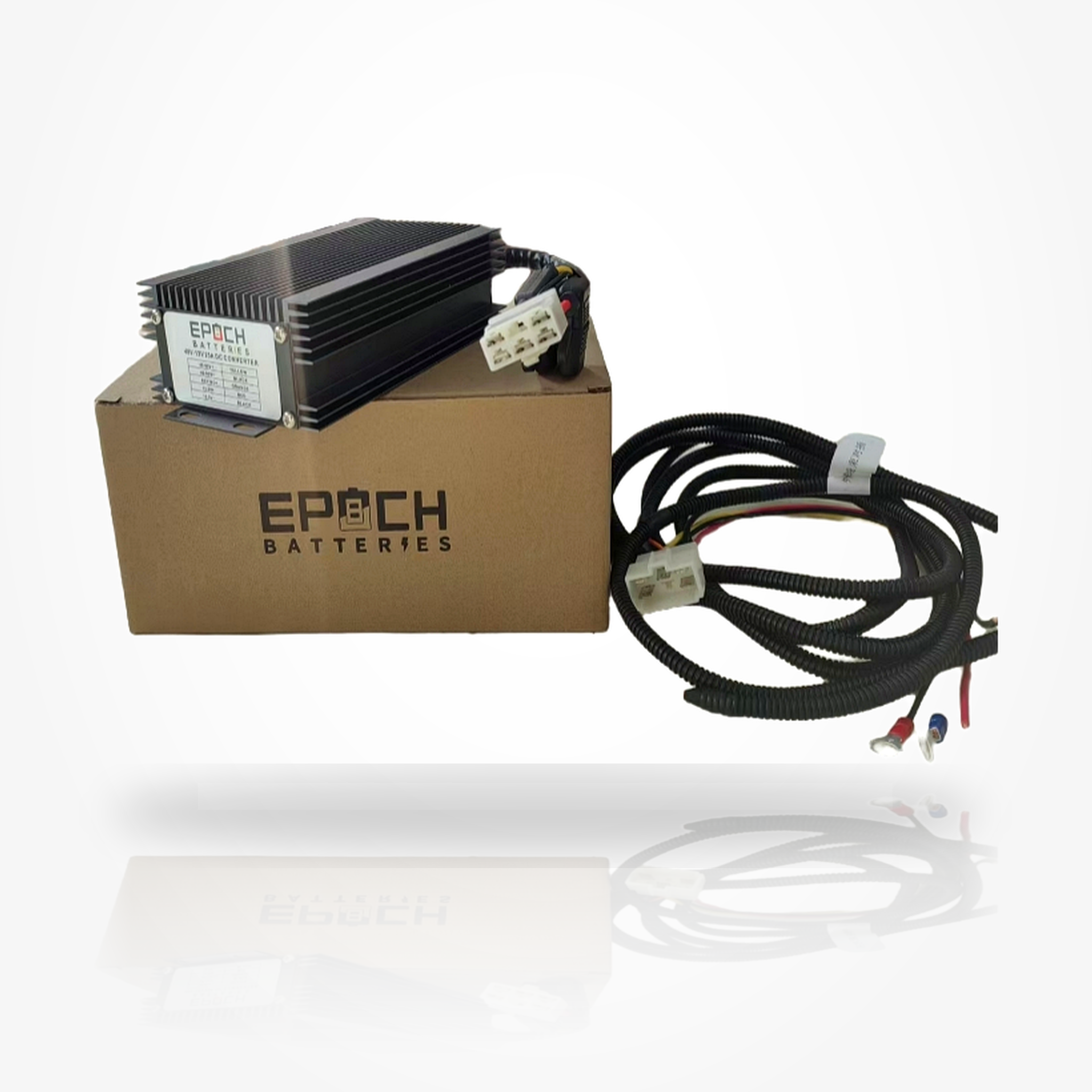

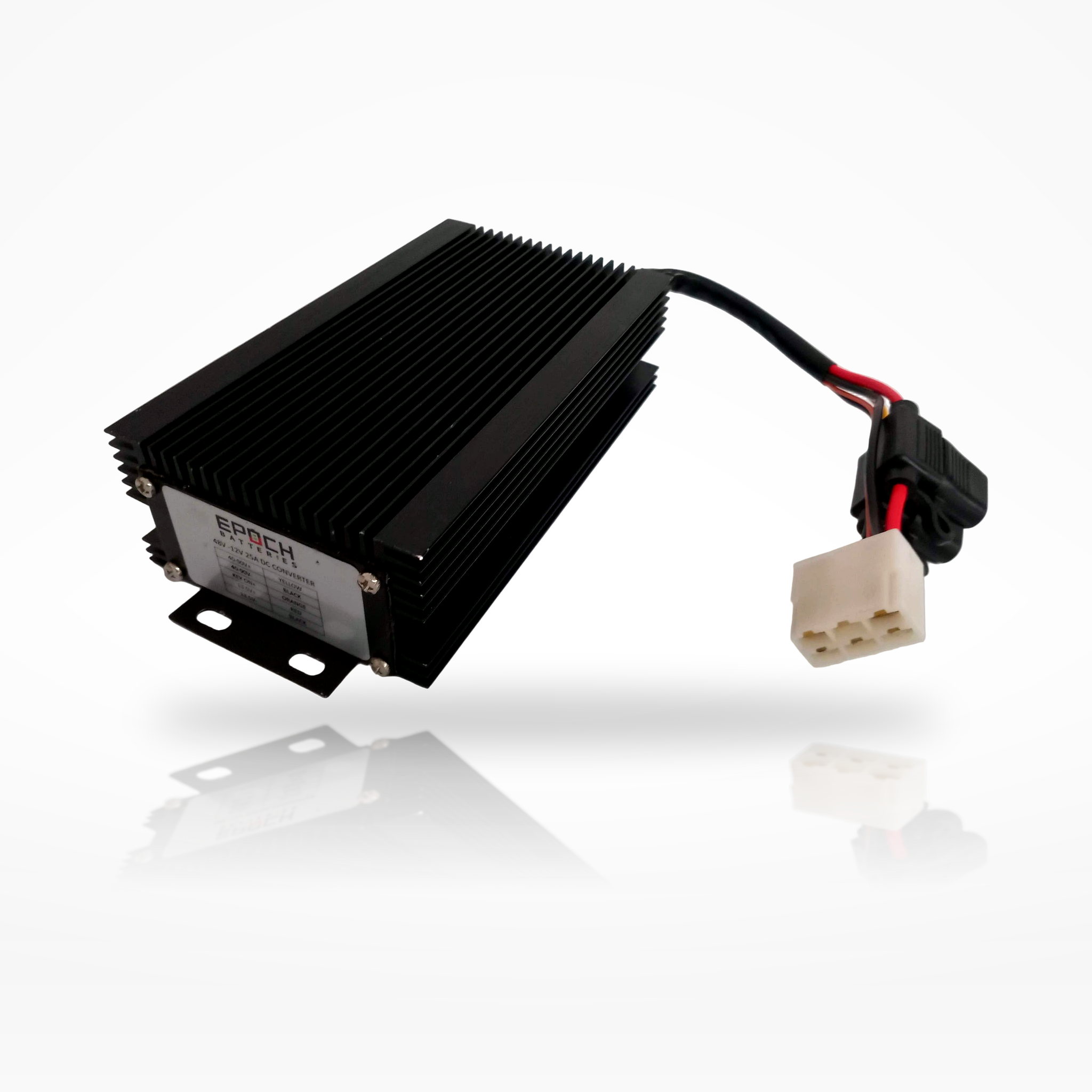

| 12V converter wiring (from the converter label) | |
|---|---|
| Yellow · 40–90V+ | Input positive, from the 48V system |
| Black · 40–90V− | Input negative, from the 48V system |
| Orange · KEY ON+ | Key-switch (enable) input |
| Red · 13.5V+ | Output positive, to 12V accessories |
| Black · 13.5V− | Output negative, to 12V accessories |
Two converter wires are black: confirm the input negative and the output negative before connecting, since reversing them can damage the converter or the accessories. Turn the battery off and disconnect the charger before wiring the converter. The label does not specify the key-on source, fusing or connector pinout; follow the kit instructions or have a qualified installer confirm them for your cart.
48V Cart Compatibility
EZGO, Club Car Precedent and Onward, Yamaha, ICON and other compatible 48V carts.
- ✓ EZGO TXT and RXV.
- ✓ Club Car Precedent and Onward, using the full-size configuration.
- ✓ Club Car DS carts: use the 48V 105Ah MINI Golf Cart Battery Complete Kit.
- ✓ Yamaha 48V carts, with 2007–2010 and 2011+ configurations.
- ✓ ICON, Bintelli, Evolution, Kandi, Epic and other compatible 48V platforms.
- ✓ Neighborhood electric vehicles, utility vehicles, and commercial fleet and specialty 48V power systems.
- ✓ Lifted carts with 12V lights and accessories powered through the included converter.
- ✓ Upgraded controllers and motors whose continuous and peak current demand fits the battery ratings.
Kit features
High-current LiFePO4 power with included conversion components.
Technical Specifications
Ratings at 25°C unless noted, from the BB51105A-Kit spec sheet, technical data sheet and user manual (Rev V02, September 2026).
| General | |
|---|---|
| Brand | Epoch Batteries |
| Product | 48V 105Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4) |
| Model / SKU | BB51105A-Kit |
| Series | Big Box Series |
| Battery type | LiFePO4 golf cart battery, 48V class |
| Chemistry | LiFePO4 (lithium iron phosphate) |
| Cell configuration | 16S1P (16 prismatic cells in series) |
| Cart configurations | Club Car Precedent, EZGO RXV, EZGO TXT, Yamaha 2007–2010, Yamaha 2011+, other compatible 48V carts |

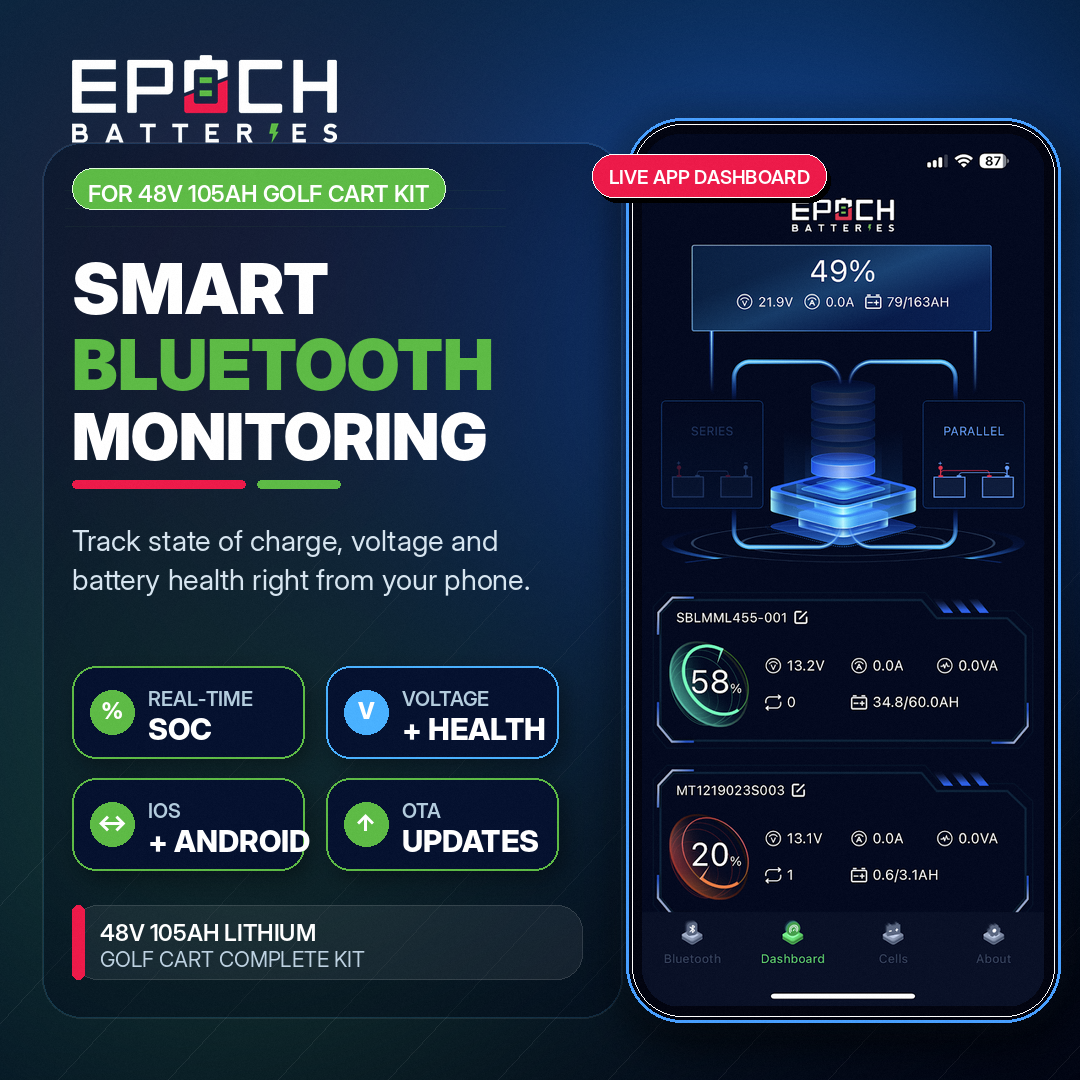

| Bluetooth | Yes — Epoch Li-Ion app (iOS and Android) |
| Firmware updates | Over the air (OTA) through the app |
| CAN communication | Yes — CAN connector on the harness, for manufacturer or dealer service |
| Cycle life | 3,500+ cycles |
| Warranty | 11-year limited warranty: free repair or replacement in Years 1–5, then 40% off MSRP on a replacement battery in Years 6–11. Register within 90 days or keep your proof of purchase. |
| Electrical | |
| Nominal voltage | 51.2V (48V class) |
| Nominal capacity | 105Ah |
| Stored energy (nominal) | 5.38kWh (5,376Wh) |
| Operating voltage range | 40–58.4V |
| Maximum charge voltage | 58.4V |
| Power-down state | Any cell below 2.2V, or pack voltage about 38V |
| Self-discharge | 3% per month |
| Current ratings | |
| Max continuous discharge | 200A (1.9C) |
| Peak discharge | 300A for up to 15 s; 700A for up to 2 s |
| Max continuous charge | 100A (0.95C) |
| Peak charge (regenerative braking) | 300A for up to 15 s |
| Battery banks | |
| Series connection | Not supported |
| Parallel connection | Max 2 batteries (210Ah, 10.75kWh) |
| Charging | |

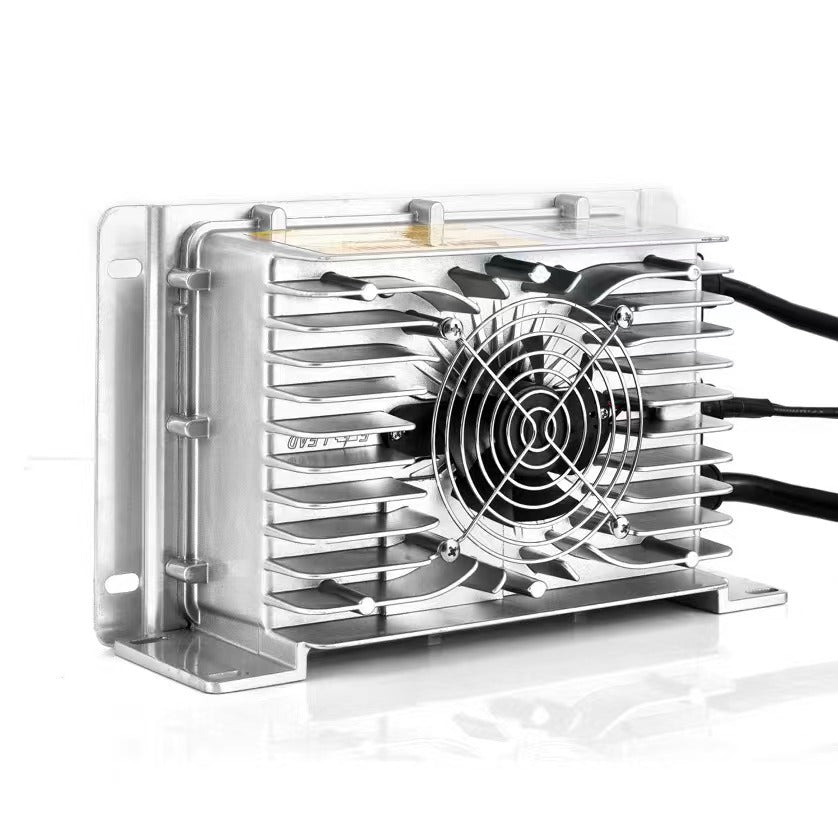

| Included charger | 48V 15A waterproof lithium charger; AC input 85–265V |
| Charge time | About 7 h from empty with the included charger |
| Charger restart | When the lowest cell falls below 3.34V (about 95% SOC) |
| Full charge | SOC resets to 100%; the gauge reads 100% |
| Lead-acid chargers | Not compatible: they will not properly charge or balance the battery |
| Temperature | |
| Charge | 0°C to 55°C (32°F to 131°F); no internal heater |
| Discharge | −10°C to 55°C (14°F to 131°F) |
| Storage (up to 1 month) | −20°C to 55°C (−4°F to 131°F) |
| Storage (recommended) | 0°C to 35°C (32°F to 95°F); up to 12 months |
| Mechanical | |
| Dimensions (L × W × H) | 18.1 × 13.4 × 9.8 in (460 × 340 × 250 mm) |
| Weight | 99 lb (45 kg) |
| Case material | Stainless steel |

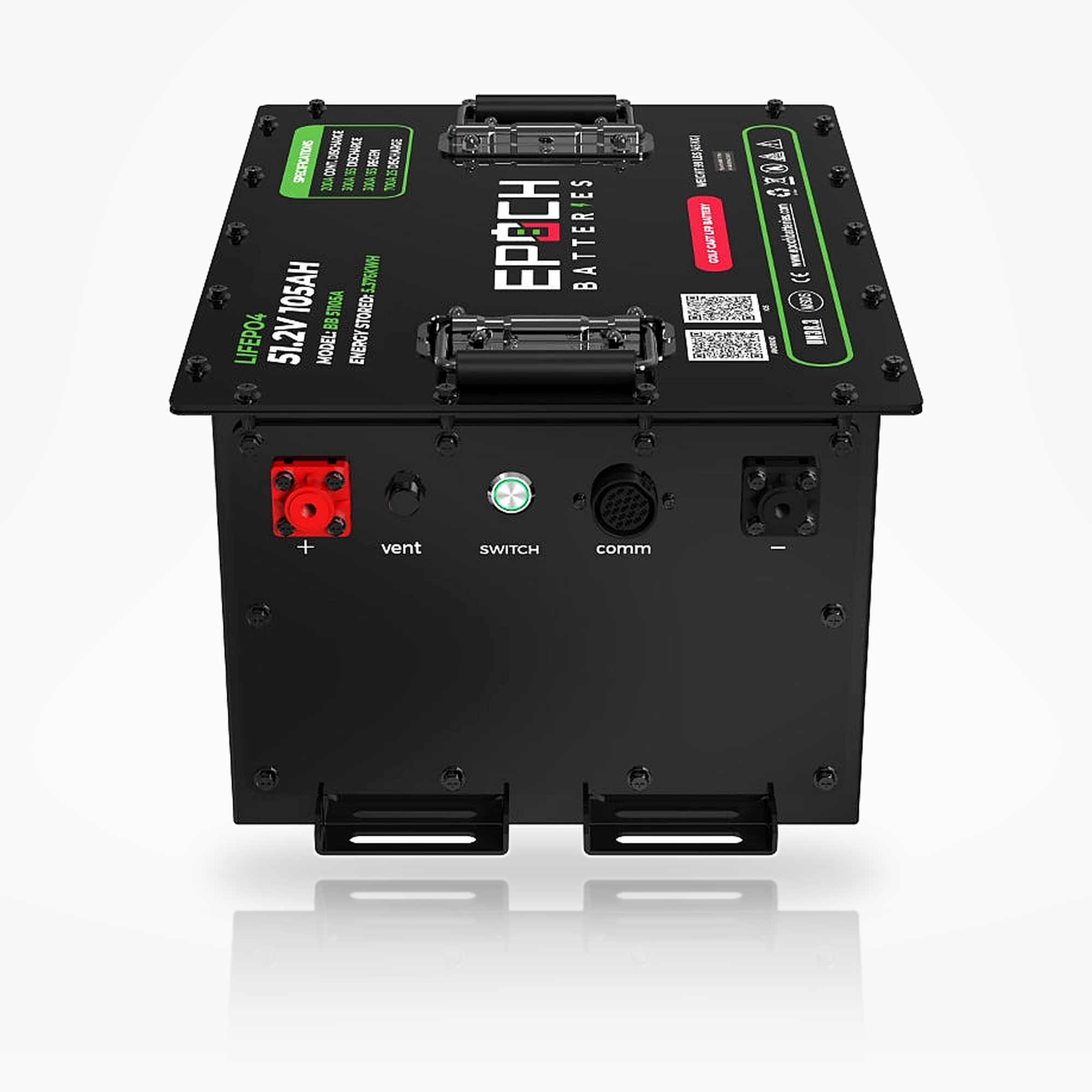

| Controls and ports | On/off switch, communication port, vent, positive and negative terminals |
| Enclosure rating | IP67 per IEC 60529: dust-tight; protected against temporary immersion (1 m, 30 min) |
| Kit contents | |
| Battery | 48V 105Ah LiFePO4 golf cart battery |
| Charger | 48V 15A waterproof lithium charger with a 10 ft heavy-duty extension cord |
| Gauge | Digital Bluetooth battery gauge: state of charge (0–100%), voltage, current and temperature |
| On/off switch | 6 ft remote on/off power switch with wiring harness (13 ft extended harness sold separately) |
| 12V converter | 48V to 12V step-down converter, 25A (input 40–90V, output 13.5V) |
| Charge port | Cart-specific charge port plug (replaces the factory charging receptacle) |
| Mounting | Cart-specific mounting brackets |
| App | Free Epoch Li-Ion app access (iOS and Android) |
| BMS protection | |
| Over-voltage | Cell and pack over-voltage protection |
| Under-voltage | Cell and pack under-voltage protection |
| Over-current | Charge and discharge over-current protection |
| Short circuit | Discharge short-circuit protection |
| Temperature | Charge and discharge over/under-temperature, ambient and MOSFET over-temperature protection |
| Cell balancing | Integrated; cell-unbalance alarm |
| Low-charge warning | Buzzer and gauge warning below 20% SOC |
Why upgrade your golf cart to lithium?
One battery instead of a bank, and no watering or acid service.
LiFePO4 (lithium iron phosphate) is a lithium-ion chemistry valued for thermal stability and long cycle life. Its voltage stays nearly flat across most of the discharge, and the battery needs no watering or acid service, only routine inspections.
Charging and everyday use
How the included charger, gauge and on/off switch work day to day.
- ✓ Charge with the included 48V 15A lithium charger: plug the included 10 ft heavy-duty extension cord into the cart's charge port and a standard 120V AC outlet. Lead-acid chargers use different profiles and will not properly charge or balance a LiFePO4 battery. Club Car carts with an On-Board Computer (OBC) may need an OBC bypass.
- ✓ Charge after each day's use, or at least once a week with occasional use, and avoid letting the state of charge fall below 20%.
- ✓ The battery charges whether its on/off switch is on or off. When it is full, the state of charge resets to 100% and the gauge reads 100%. If the charger stays connected, it restarts when the lowest cell falls below 3.34V (about 95% SOC).
- ✓ Disconnect the charger once the battery is full, and turn the battery off when the cart is not in use.
- ✓ There is no internal heater: the BMS blocks charging outside 0°C to 55°C (32°F to 131°F), so let a cold battery warm above freezing before charging.
- ✓ On/off: press the 6 ft remote on/off switch on the harness once to turn the battery on (the switch LED and gauge light up) and again to turn it off. The battery is on when either the switch on the case or the switch on the harness is on; to turn it off, both switches must be off.
- ✓ Automatic shutdown: with no discharge, the battery turns off after 7 days above 20% SOC, or after 24 hours at or below 20% SOC. Press the on/off switch twice to restart.
- ✓ Low-charge warning: below 20% SOC, the buzzer sounds and the gauge shows a warning. Charge as soon as possible.
- ✓ Power-down recovery: if any cell falls below 2.2V or the pack to about 38V, switch the battery on, then connect the charger immediately.
- ✓ Long-term storage: keep the state of charge between 60% and 90%, turn the battery off and store it dry at 10–35°C (50–95°F) where practical. Check the state of charge at least every 3 months and recharge as needed.
Installation and safety
Verify your cart and configuration before installation.
Only authorized mechanics or technicians should install the battery. Confirm your cart is a compatible 48V platform and verify tray fitment (the 18.1 × 13.4 × 9.8 in case plus cable clearance), bracket configuration, the controller's continuous and peak current settings, cable routing, OBC requirements, accessory wiring and charger installation. Club Car DS owners should use the Mini kit linked above.
- Turn off the cart and all accessories, disconnect the cables safely and remove the original lead-acid batteries.
- Fasten the cart-specific bracket in the compartment as the base, and install the charger in the compartment.
- Replace the cart's original charging receptacle with the included cart-specific charge port plug; this step is required for safety.
- Mount the digital gauge and the remote on/off switch on the dashboard, and route the 6 ft wiring harness. For stretched, 6-passenger or custom carts that need more reach, use the 13 ft Extended Harness for LiMAX Big Box (sold separately).
- Set the battery in the compartment and fasten it to the bracket base.
- Connect the battery terminals to the charger's leads and to the cart's positive and negative cables, observing polarity.
- Connect the harness to the battery communication port, on/off switch, gauge and charger; switch on and confirm the gauge shows the state of charge. If it is low, charge before first use.
- ✓ Install a main fuse or DC-rated breaker as close as practical to the battery positive terminal. The internal BMS does not replace external overcurrent protection for the wiring.
- ✓ Size loads, conductors and overcurrent protection to the 200A continuous rating; the 300A and 700A ratings apply for up to 15 and 2 seconds only.
- ✓ Deep-cycle battery, not cranking-rated.
- ✓ Install the battery upright, secured with the supplied brackets, and keep the vent clear; allow extra space for terminal hardware, cable bend radius and service removal. Damage from an unsecured or improperly secured battery is excluded from warranty coverage.
- ✓ Battery banks: parallel only, up to 2 matched BB51105A-Kit batteries of similar age, condition and firmware, at the same state of charge. Never connect in series, and never mix with lead-acid batteries or other models.
- ✓ IP67 covers dust and temporary immersion only (1 m, 30 min). Keep the communication port and harness connectors sealed, and inspect the battery after any immersion.
- ✓ Never connect the terminals together or let tools or jewelry bridge them. Stop using the battery if it is swollen, leaking, smoking, unusually hot or damaged, and follow the Safety Data Sheet (SDS) listed under Downloadable resources.
- ✓ Register the battery within 90 days, or keep your proof of purchase, to confirm your coverage start date.
48V Lithium Golf Cart Battery Kit FAQs
Common questions about compatibility, Club Car DS fitment, charging, 12V accessories, range, and golf cart conversion.
Will this complete kit fit my specific golf cart?
This full-size kit comes in bracket configurations for Club Car Precedent, EZGO RXV, EZGO TXT, Yamaha 2007–2010 and Yamaha 2011+, and in an Other configuration for other compatible 48V carts. Compatible carts include EZGO TXT and RXV, Club Car Precedent and Onward (full-size configuration), Yamaha 48V carts, and ICON, Bintelli, Evolution, Kandi, Epic and other compatible 48V platforms. For Club Car DS carts, use the 48V 105Ah MINI Golf Cart Battery Complete Kit. The battery case is 18.1 × 13.4 × 9.8 in (460 × 340 × 250 mm); always confirm tray fitment and cable clearance, cable routing and your controller's current settings before installation.
Which kit should I choose for a Club Car DS?
Use the 48V 105Ah MINI Golf Cart Battery Complete Kit, which has a Club Car DS configuration.
What comes in the box?
The 48V 105Ah LiFePO4 battery, a 48V 15A waterproof lithium charger with a 10 ft heavy-duty extension cord, a digital Bluetooth battery gauge, a 6 ft remote on/off power switch with wiring harness, a 48V to 12V step-down converter (25A), a cart-specific charge port plug that replaces the factory charging receptacle, cart-specific mounting brackets and free access to the Epoch Li-Ion app. The listed kit contents do not include a main fuse or DC-rated breaker; install one close to the battery positive terminal.
Can I still use my old lead-acid golf cart charger?
No. Lead-acid chargers use different charging profiles and will not properly charge or balance a LiFePO4 battery. The kit includes a 48V 15A waterproof lithium charger; Club Car carts with an On-Board Computer (OBC) may need an OBC bypass. Never use lead-acid equalization, desulfation or repair modes on this battery.
How long does it take to charge?
About 7 hours from empty with the included 48V 15A charger. Charge after each day's use, or at least once a week with occasional use.
How do I plug in to charge?
Through the included cart-specific charge port plug, which replaces the factory charging receptacle. Plug the 10 ft heavy-duty extension cord that comes with the charger into the port and a standard 120V AC outlet; the port passes AC power to the onboard 48V 15A lithium charger. The charger, not the port plug, sets the LiFePO4 charge profile.

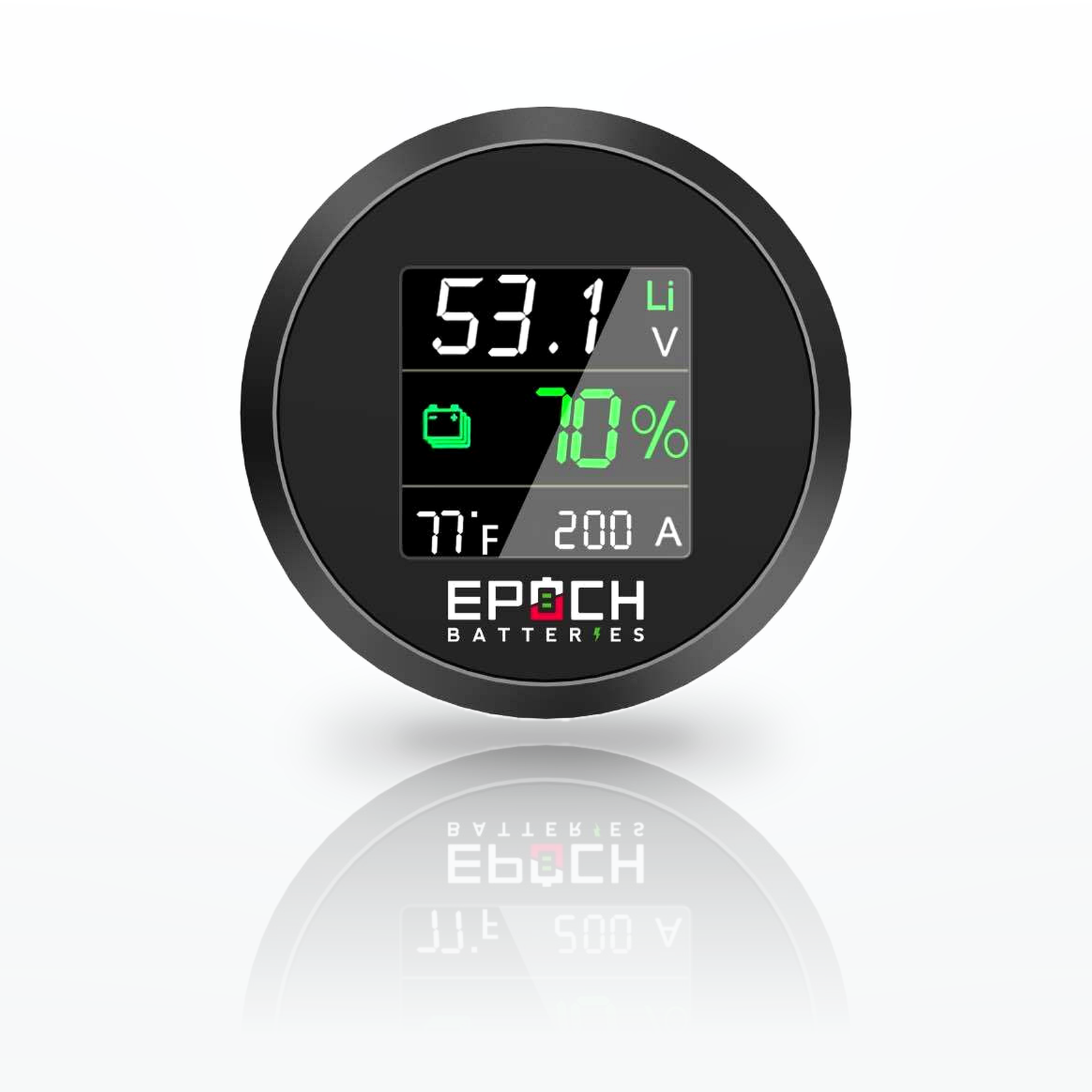

What does the digital gauge show?
The dash-mounted digital gauge shows the state of charge from 0 to 100%, battery voltage, current and temperature, and shows warnings when the BMS raises an alarm. The kit also includes free access to the Epoch Li-Ion app for iOS and Android, which connects over Bluetooth to show battery status on your phone and install firmware updates over the air.
Will the remote on/off switch reach the dash on a stretched cart?
The included remote on/off power switch comes on a 6 ft harness, which suits standard 2-passenger and many 4-passenger carts. For stretched, 6-passenger or custom carts, where the battery sits farther from the dash, add the 13 ft Extended Harness for LiMAX Big Box (sold separately). Route the harness along protected frame paths and do not splice or daisy-chain it.
How do I power my 12V headlights and radio with a 48V battery?
Through the included 48V to 12V step-down converter, so 12V headlights, light bars, radios and USB outlets receive a regulated supply (its label marks the output 13.5V). The converter is rated 25A, so keep the total 12V accessory load within 25A. Two of its wires are black, input and output negative: confirm which is which before connecting.
Do I need to bypass the OBC on my Club Car?
If your Club Car uses an older On-Board Computer (OBC) to control the original lead-acid charger, an OBC bypass may be required so the included lithium charger can charge the battery directly. Check your exact model and follow the kit instructions or a qualified installer's guidance.
What is the estimated range of the 105Ah battery?
Epoch estimates 35 to 45+ miles per charge for many standard carts. Range depends on terrain, passenger weight, tire size, lift kits, controller tuning, motor condition, speed and driving style; modified carts and steep terrain reduce range.
Can this battery handle upgraded aftermarket motors and controllers?
Yes, when the controller's current demand fits the battery ratings: 200A continuous, 300A for up to 15 seconds and 700A for up to 2 seconds. Check the controller's continuous and peak current settings, especially on upgraded or tuned controllers, and keep them within these ratings. Regenerative braking can return up to 300A for 15 seconds; the continuous charge limit is 100A.
Can I charge it in freezing weather?
Not below freezing. The battery has no internal heater, and the BMS blocks charging outside 0°C to 55°C (32°F to 131°F). Let a cold battery warm above freezing before charging. It discharges from −10°C to 55°C (14°F to 131°F).
Is the battery waterproof?
It is rated IP67 per IEC 60529: dust-tight and protected against temporary immersion up to 1 m for 30 minutes. Do not submerge, pressure-wash or leave it in standing water, and inspect the battery and connectors after any immersion.
Can I connect two batteries together?
Up to 2 BB51105A-Kit batteries can be connected in parallel (210Ah, 10.75kWh at 51.2V). Series connection is not supported. Use matched batteries of similar age, condition and firmware, charge each fully first, and never mix them with lead-acid batteries or other models.
Do I need to add water to this battery or winterize it?
No watering: the battery needs no watering or acid service, though routine inspections keep it operating safely (check the terminals, cables, fuses and mounting before use, and terminal tightness monthly). For off-season storage, keep the state of charge between 60% and 90%, turn the battery off and store it dry at 10–35°C (50–95°F) where practical, checking the state of charge at least every 3 months. The warranty excludes batteries left uncharged for more than three months.
What does the buzzer or a WARNING code on the gauge mean?
The BMS reports alarms and protection events on the gauge, with the buzzer and in the app. If the buzzer sounds while driving, slow down or stop and check the battery; otherwise BMS protection may shut it down. For low-voltage or low-charge warnings, stop and charge the battery. For temperature warnings, stop and let the battery return to its operating range. For over-current warnings, reduce the load and check the controller's current settings. For detection faults, MOSFET faults or a persistent cell-unbalance alarm, stop using the battery and contact Epoch support.
Why did my battery turn off by itself?
Above 20% state of charge, the battery shuts down after 7 days without discharge; at or below 20%, after 24 hours. Press the on/off switch twice to restart: once to reset the switch and once to turn the battery on.
What does the warranty cover?
The BB51105A-Kit is backed by an 11-year limited warranty (5 years of free repair or replacement, then 40% off MSRP on a replacement battery through Year 11) covering qualifying defects in materials and workmanship under normal use, subject to Epoch Batteries' warranty terms, model-specific remedy schedule and claim procedures. Proof of ownership is required for any claim, and coverage is non-transferable: it applies only to the original purchaser. Coverage starts on your purchase date. Register within 90 days at epochbatteries.com/pages/product-registration or keep your proof of purchase; if you have neither, coverage starts on the manufacturing date. The full terms at epochbatteries.com/pages/11-year-warranty govern coverage, remedies and exclusions.
