48V to 12V (10A) Voltage Reducer

• Wide range Input Voltage:DC 16V-58V
• Output Voltage：DC 12V (Output Current: 10A max), (Output Power: 120W max)High Conversion Efficiency: up to 95%
• Built-in intelligent protection with undervoltage/overload/low load/short circuit/overheating function
• Aluminum shell with silicone potting, with IP68 waterproof grade, can work in the rain, shockproof, moisture-proof, dust-proof, good heat dissipation, more durable.
• Widely used in automotive, surveillance systems, railway signals, medical equipment, instruments and meters, LED products, LED strips, cable TV and other low power test systems

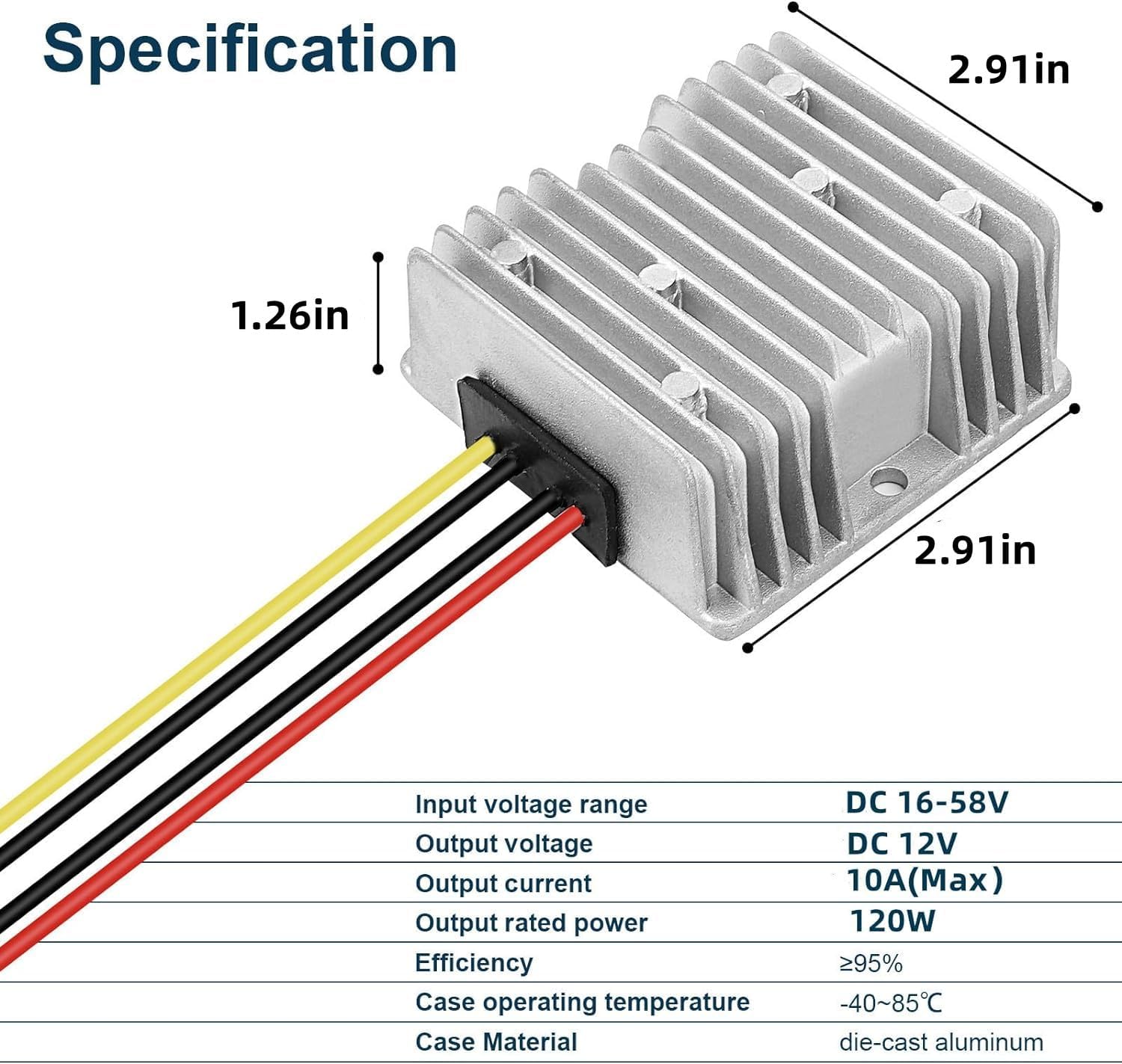

Parameters:

• Wide range Input Support:DC 16-58V
• Output voltage：DC 12V (fixed output)
• Output current: 10Amp (Max)
• Output Rated Power: 120W
• Conversion efficiency: 95%
• Enclosure: IP68
• Case operating temperature: -40~85°C
• Weight: 280 grams

Intelligent protection:

• Overcurrent protection
• Overload protection
• Low load protection
• Short circuit protection
• Intelligent overheating protection
• When the equipment returns to normal, operation resumes automatically

Package Included

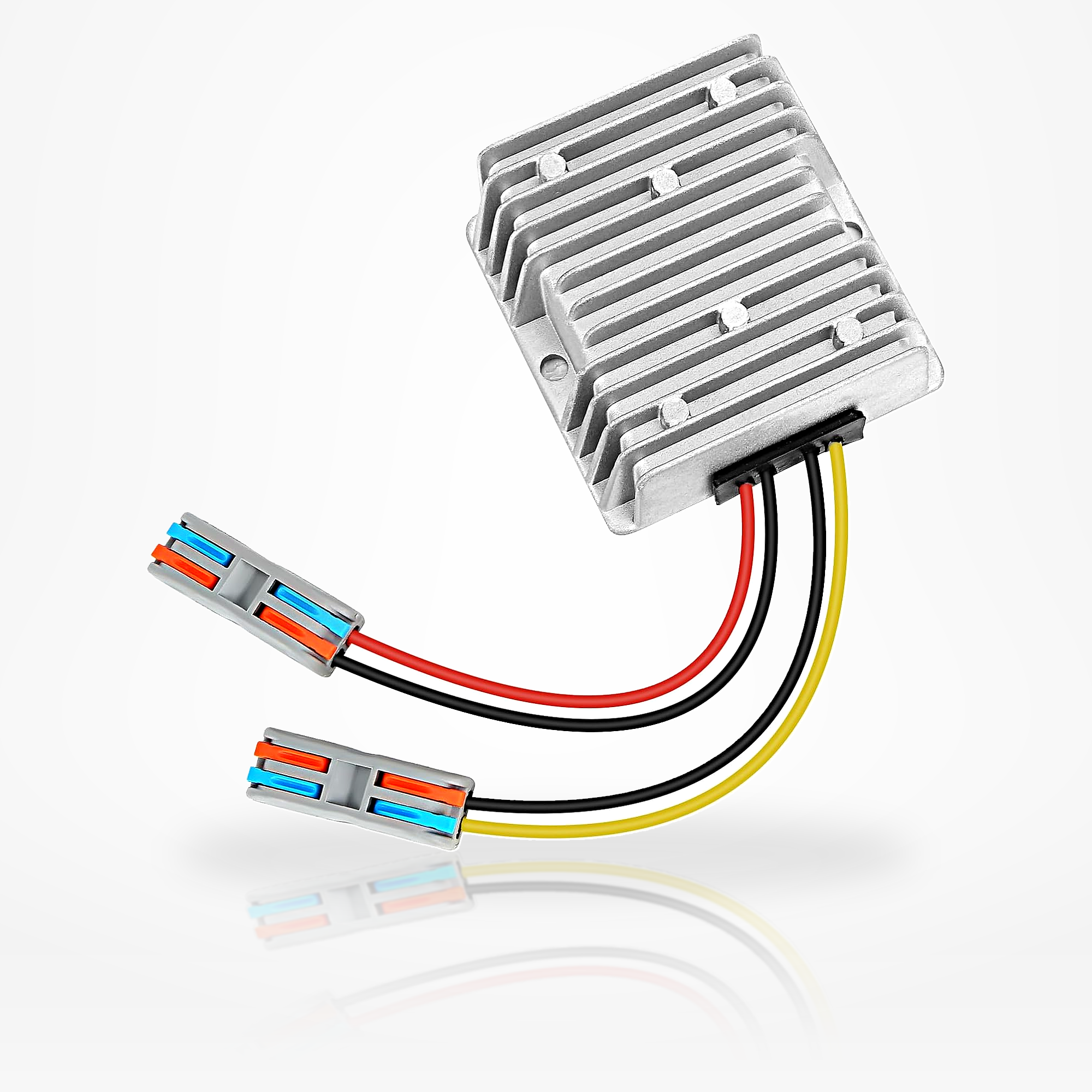

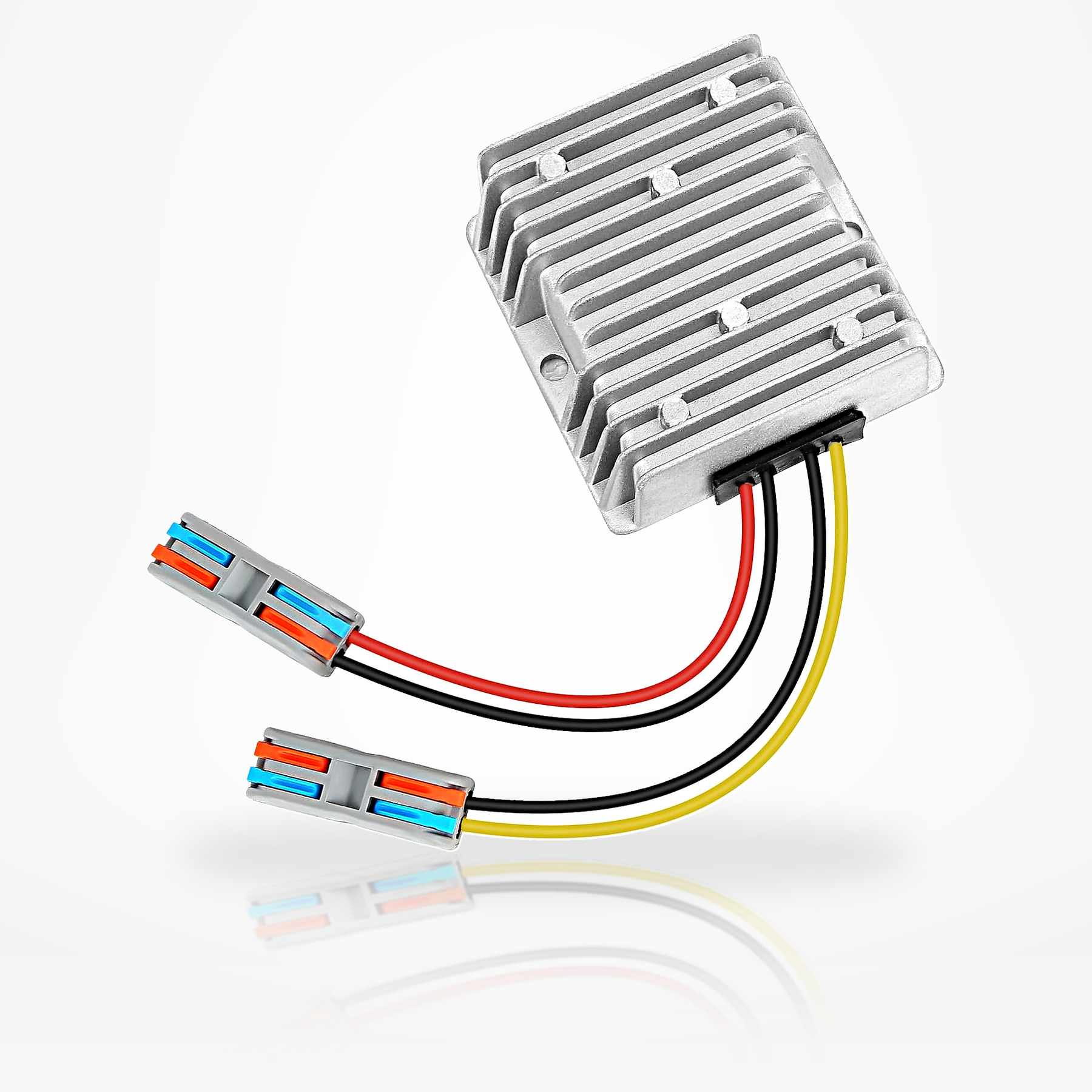

• 1 * DC 36V/48V to 12V 10A120W Converter
• 2 quick connect terminals as a gift. Note: strip 0.4 inch (10 mm) of wire and insert it into the connector
